Description

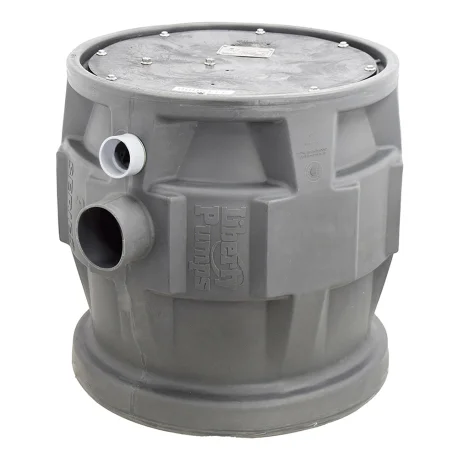

Liberty Pro380-SD series is a variation of the original Pro380 with a side discharge outlet, designed primarily for outdoor installations. This automatic sewage ejector system includes factory-assembled pump and basin combo (with all internal piping) and is ready for installation – simply connect the piping and plug in the pump.
Features:
- Side discharge type models are best suited for outdoor installations or where vertical discharge is undesirable
- Fully assembled & ready for installation – simply plug in the cord and connect the piping
- One-piece, heavy-duty basin with integrally molded handles, anti-flotation collar & torque stops
- Robust basin cover with (8) stainless steel bolts – fully gasketed
- Made in the USA
Technical Specifications:
- Basin Size: 24″ Wide x 24″ Deep
- Basin Capacity: 41 Gallons
- Pump Model: LE51A-2 sewage pump (automatic, with wide-angle float switch)
- Pump Specs: 1/2 HP, 115V, 12A, 1-Phase, 25ft cord (w/ plug)
- Connections: 2″ FNPT Side Discharge, 4″ No-Hub Inlet
- Vent Connection: there’s no separate vent in a side discharge (-SD) model, instead, a 4″ x 4″ x 2″ PVC or rubber wye fitting is installed (not included) at the basin inlet to facilitate venting (see instructions file for details)
- Approx Weight: 70 lbs
Warranty:
3-year warranty
