Description

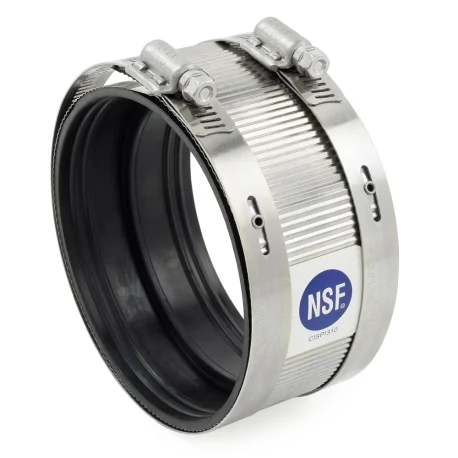

This no-hub coupling is NSF listed (for where the certification is required) and is used to connect two 4″ no-hub cast iron pipes or fittings together. Also compatible with Sch. 40 or 80 PVC pipe (both solid core and foam core).

Technical Specifications:

For use with: 4″ cast iron no-hub or sch. 40 PVC pipe
Shield & clamp material: 301 AISI Stainless Steel
Screw material: 304 AISI Stainless Steel
Screw size: 5/16″ HEX head
Gasket material: Neoprene
Max. torque: 60 inch/lbs
Certified NSF, UPC listed, meets ASTM C1277 and C564, CISPI 310 and CSA B602 Standards
