About This Product

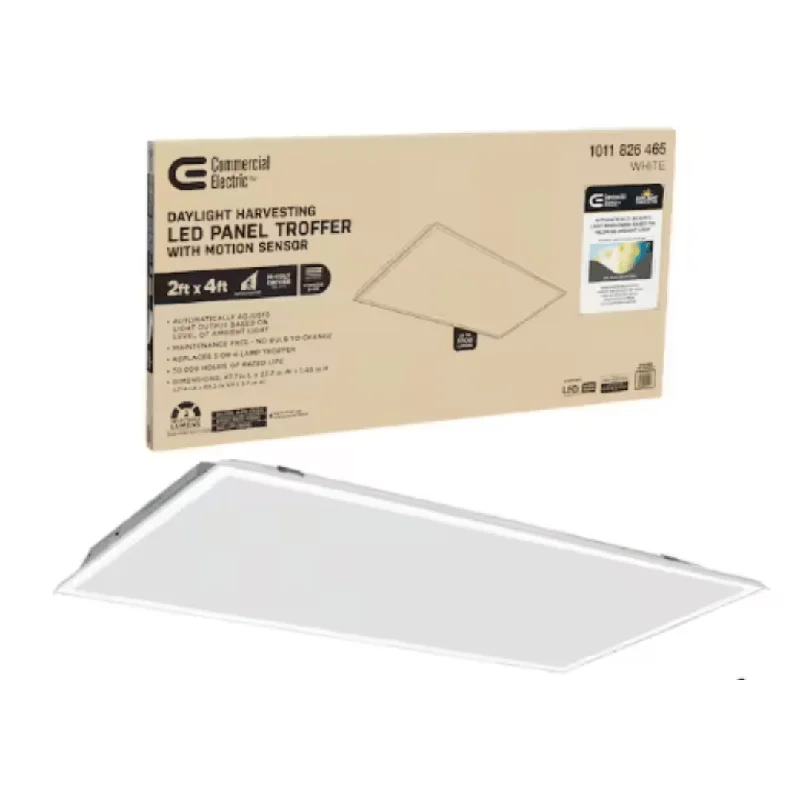

Daylight Harvesting is an advanced lighting control strategy designed to reduce energy costs by utilizing natural daylight to supplement electric lighting. This system adjusts lighting automatically, dimming or switching it off when sufficient daylight is available. Occupancy sensors further enhance energy savings by providing automatic ON/OFF switching. Ideal for spaces with skylights, corridors, and offices near windows, Daylight Harvesting helps reduce energy consumption while maintaining proper lighting levels.
Highlights
-
Daylight Harvesting Functions:
-
Function A: Lights turn on when natural light is insufficient or when movement is detected, maintaining the desired light level.
-
Function B: Lights adjust to maintain foot candle level, dimming or brightening based on natural light.
-
Function C: Lights dim to 30% after 5 or 10 minutes of inactivity.
-
Function D: Lights switch off completely after 3 or 15 minutes of inactivity.
-
-
DIP Switch Settings: Adjust sensor status, brightness levels, detection range, motion hold, and stand-by times (detailed in the instruction manual).
-
Motion Sensor Detection Coverage: Installation height of 8-12 ft, with 100% detection at 34 ft and 50% detection at 17 ft.
-
Lumen Boost Levels: 3300, 4400, or 5500 Lumens.
-
Wattage Levels: 30W, 40W, or 50W.
-
Color Temperature Options: Neutral White (3500K), Bright White (4000K), Daylight (5000K).
-
AC Voltage & Frequency: 120-277V, 60Hz.
-
Dimmable: Requires 0-10V dimmer switch and separate low-voltage wiring (suggested dimmers: LUTRON DVSTV-453PH-WH or DVELV-300PH-WH).
-
Product Dimensions: 47.7in. L x 23.7in. W x 1.46in. H; Weight: 8 lbs.
-
Installation: Standard recessed mount.
-
Rated Life: Up to 50,000 hours.
Specifications
| Product Height (in.) | 1.46 in. |
| Product Width (in.) | 47.76 in. |
| Actual Color Temperature (K) | 3500, 4000, 5000 K |
| Color Temperature | Adjustable White |
| Color/Finish Family | White |
| Dimmable Capability | 0-10-Volt Dimming |
| Included | No Additional Items Included |
| Location Use | Garage, Office, Warehouse |
| Material | Aluminum |
| Power Source | Hardwired |
| Product Weight (lb.) | 8.00 lb. |
| Recommended Mounting Height (ft.) | 15 ft. |
| Voltage (V) | 277 V |
| GTIN | 849489095097 |
