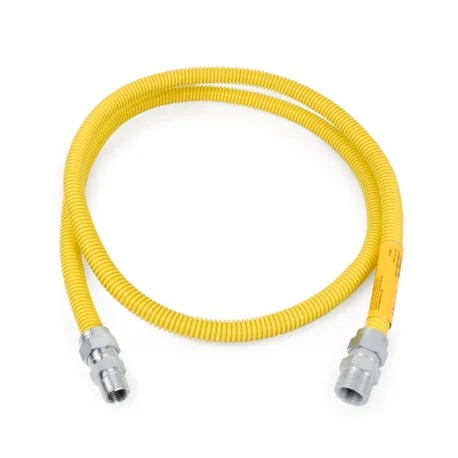

72″ SafetyShield Stainless Steel Gas Appliance Connector, 1/2″ MIP (3/8″ FIP) x 3/4″ MIP (1/2″ FIP), 1/2″ ID

Description

Dormont 72″ long 1/2″ ID (5/8″ OD) standard gas connector for use with indoor/outdoor stationary appliances. SafetyShield yellow polymer coating provides unequaled corrosion resistance.

Features:

• 304 Stainless Steel tubing is flexible, durable and corrosion-resistant
• Dormont SafetyShield yellow coating protects the steel from common household chemicals and cooking oil, allows for easy identification and is standard for appliance gas connectors
• CSA certified and 100% leak tested
• Assembled in the USA.

Technical Specifications:

• Connections: 1/2″ MIP (3/8″ FIP) x 3/4″ MIP (1/2″ FIP)
• Hose Diameter: 1/2″ ID (5/8″ OD)
• Length: 72″
• Temperature: – 40°F to 150°F
• Maximum Pressure: standard line pressure up to 1/2 PSI
• Flow Capacity for Natural Gas (Straight Length): 86,000 BTU/hr
• Flow Capacity for LPG/Propan (Straight Length): 137,600 BTU/hr
• Tubing: Annealed, 304 stainless steel (ASTM A240)
• Coating: Custom formulated yellow polymer
• Nuts & Adapters: Zinc plated carbon steel
