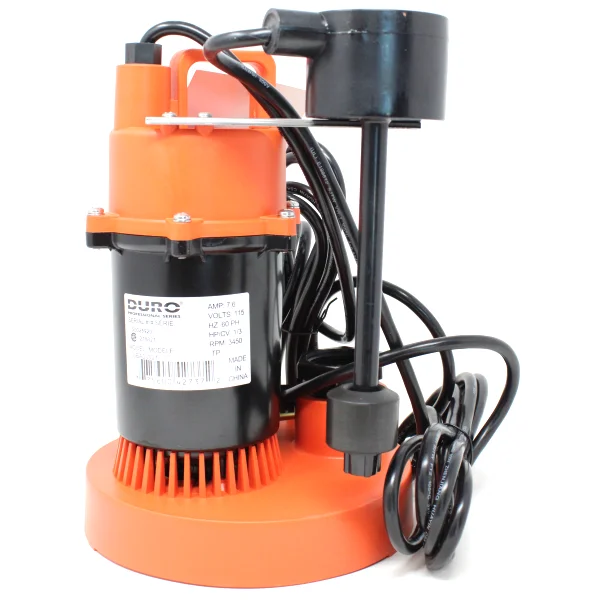

Duro 8094 DSB250V Titan Basement Submersible Sump Pump 1/3 HP – Vertical Float

Description

Duro 8094 DSB250V Titan Basement Submersible Sump Pump 1/3 HP – Vertical Float.

TITAN Submersible Sump Pump Features:

• Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
• Stainless steel hardware for long lasting durability.
• Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
• Glass filled thermoplastic vortex impeller designed for high lift and flow capacity.
• Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
• Upper and lower NSK ball bearings for improved pump performance and extended operating life.
• Piggyback tethered or vertical float switches provide great versatility for simple installations and serviceability.
• 1-1/2” or 1-1/4” NPT discharge.
• 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection.

Specifications:

• Item Number: 8094
• Model Number: DSB250V
• : 1/3HP Submersible Sump Pump
• Switch Type: Vertical
• Maximum Discharge Head (ft): 23
• Maximum Capacity (USGPM): 53.3
• Voltage: 115
• Hz: 60
• Maximum Current (Amp.): 4
• RPM: 3450
• Shipping Weight (lbs): 11

Technical Downloads:

• Duro 8094: Technical Download
