Description

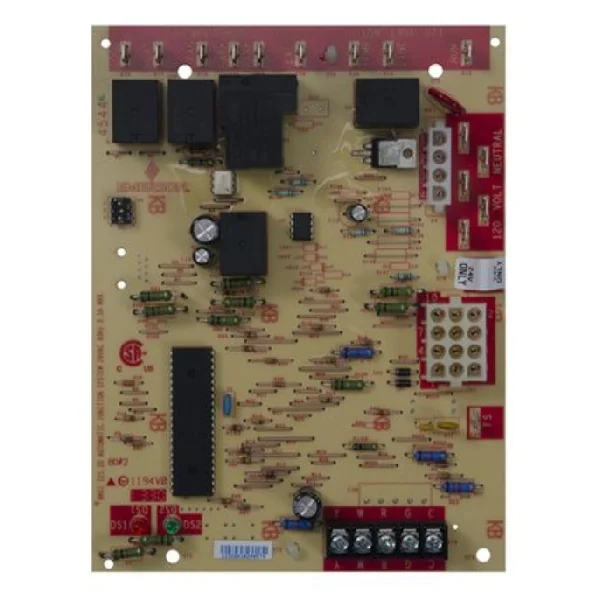

Emerson 50A66-743 Integrated Furnace Controls Direct OEM Replacement

Replaces:

• Lennox
• 100925-01, 30W25, 00925-02, 30W2501, 100925-03, 69M08, 17W92, 69M0801, 17W9201, 69M15, 23W51, 69M1501, 23W5101
• White-Rodgers
• 50A66-122, 50A66-123

Features:

• Direct OEM replacements designed for high volume major brand controls
• Models include PSC, Variable Speed ​​and ECMx motor control
• Diagnostic LED indicators streamline installation and system troubleshooting
• 120V air cleaner output and 120V humidifier output up to 1 Amp max
• Factory standard safety timings and adjustable fan delay options
• Replaceable automotive style fuse

Specifications:

• Family Brands of Equipment – Lennox
• Stages – Single Stage
• Ignition Type – 14.5 FLA – 25.0 LRA @ 120 Vac
• Ignitor Voltage – 80 Vac only
• Inducer Motor/Blower Motor – PSC/PSC
• Blower Motor – Speed Taps: Heat, Cool, Fan
• Thermostat Inputs – R, C, W, YG
• Accessories – None
• Twinning – No
• Communicating System – No
• Mounting Options – Standoff
