Description

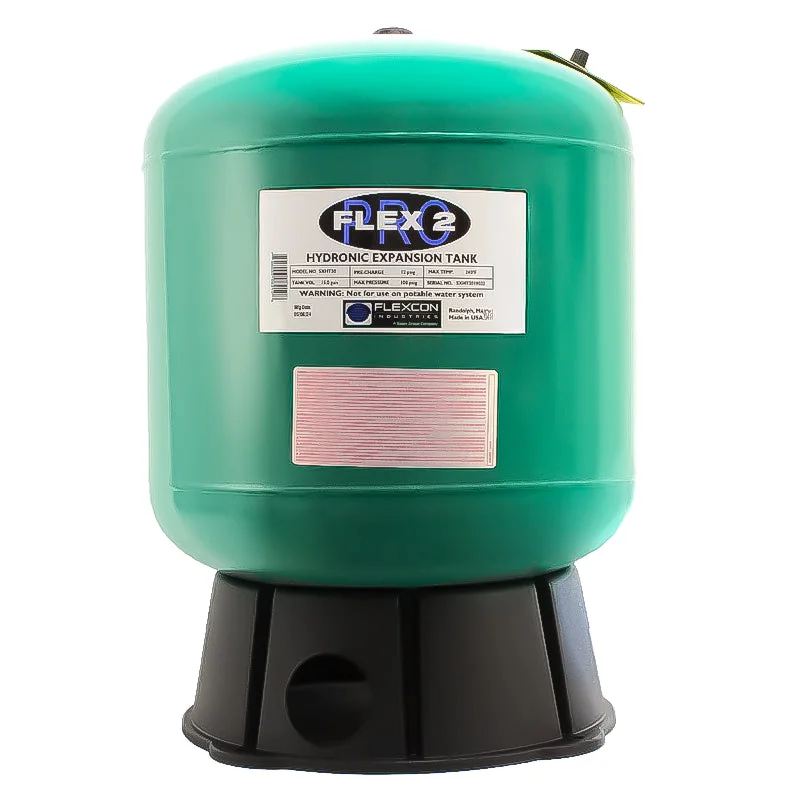

Flexcon WHV50 Vertical Thermal Expansion Tank 14 Gallons – 1″ Connection

Features:

• Tank: 16-gauge cold rolled steel
• Finish: Appliance-quality paint for indoor or outdoor installation
• Water chambers: Top diaphragm is 100% butyl rubber, lower water chamber is anti-microbial, copolymer polypropylene
• Connection: Welded stainless steel NPT thread
• Air valve: Brass valve with O-ring seal
• Testing: High pressure, seam weld, helium, final pre-charge check
• Warranty: 5 year

Cross Reference:

Amtrol: ST-30V, Bell & Gossett: PT-30V, Calefactio: HGTE-50, Watts: PLT-35

Product Literature:

• Flexcon WHV Product Literature

Submittal Literature

• FLEX2PRO WHV Submittal Sheet
