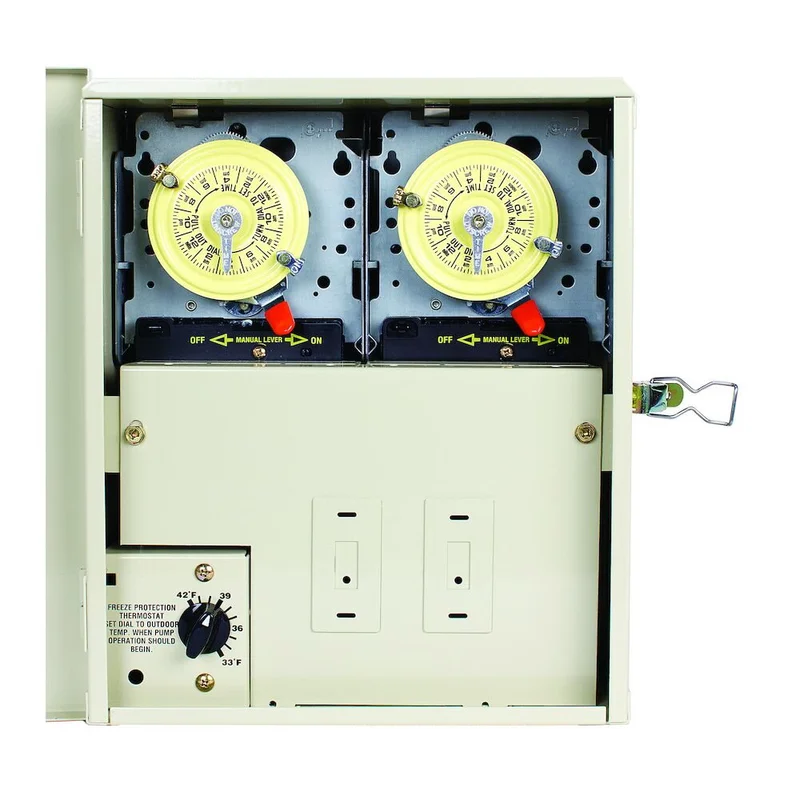

Intermatic PF1202T Freeze Protection Control Center with 2 Timers and Thermostat for 240V, Type 3R Metal Enclosure
Intermatic PF1202T Freeze Protection Control Center with 2 Timers and Thermostat for 240V Cleaner Applications, Type 3R Metal Enclosure
Protects pool/spa equipment against freeze damage.
Features:
- GFCI and switch mounting capabilities
- Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
- Heavy-duty Type 3R metal indoor/outdoor enclosure
Applications:
- Protection
- Pump Control
Specifications:
| Input Voltage Range(s) | 240 VAC, 60 Hz | Number Of Circuits | 2 |
| Resistive | 17 A, 240 VAC, 60 Hz | Switch Type | DPST |
| Enclosure Type | Outdoor type 3R plastic | Maximum Power Consumption (W) | 3 W |
| Warranty Period | 1-Year limited | Motor (Three-Phase) | 3 HP, 240 VAC, 60 Hz |
| Power Center Ratings Display | 120/240 VAC, 60 Hz, Single-Phase | Product Depth (in) | 4.25 |
| Product Depth (mm) | 108 | Product Height (in) | 12 |
| Product Height (mm) | 304.8 | Product Width (in) | 12.875 |
| Product Width (mm) | 327 | Unit Carton Height (in) | 5.63 |
| Unit Carton Length (in) | 13.81 | Unit Carton Weight (lb) | 12.374 |
| Unit Carton Width (in) | 12.06 |
