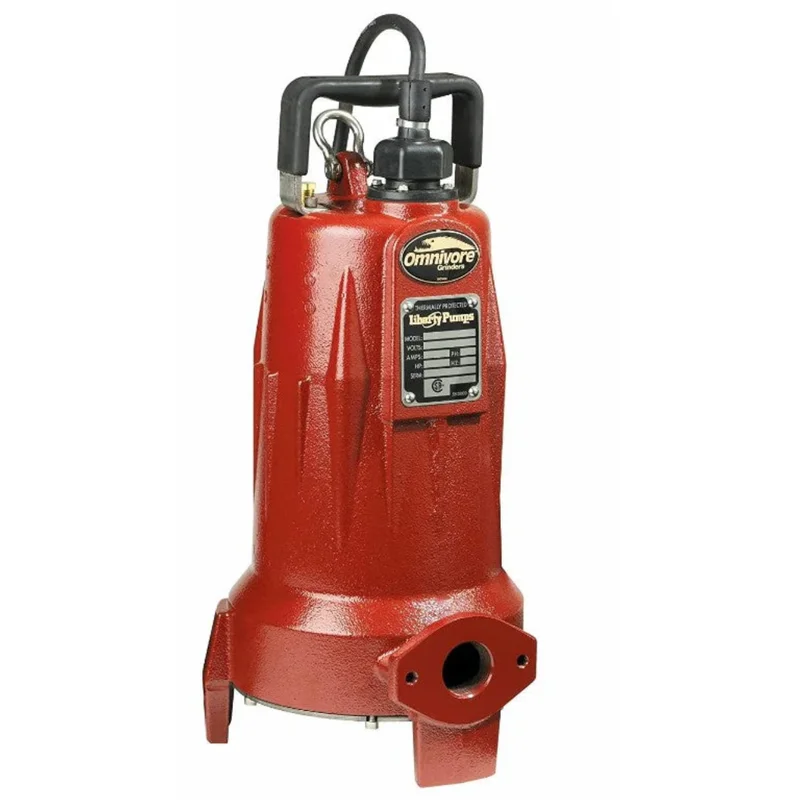

Liberty 2 HP Omnivore Grinder Pump (External Capacitor) LSG202M-C
The Liberty LSG202M-C offers the same powerful grinder performance as its internal-capacitor counterpart, but is engineered to be used with an **external capacitor / control panel configuration**. Ideal for installations where remote or modular control is needed, this variant supports flexible system design while retaining the heavy-duty features of the Omnivore line.
Key Features & Benefits
- 2 HP motor with oil-filled and thermally protected design.
- V-Slice® cutter technology for advanced solids shredding.
- External capacitor configuration — allows use of a custom control panel or centralized capacitor setup.
- 1-1/4″ discharge — standard high-pressure sewer connection.
- Uni-body cast iron housing with epoxy finish for strength and corrosion resistance.
- Dual shaft seals (upper & lower) — engineered to protect internal components.
- Quick-disconnect cord connector — facilitates serviceability without opening the pump.
Specifications
| Model | LSG202M-C |
| Horsepower | 2 HP |
| Discharge | 1-1/4″ FNPT |
| Capacitor Type | External (requires matched control panel) |
| Cutting System | V-Slice® cutter (440 SS) |
| Housing & Body | Uni-body cast iron / epoxy finish |
The Liberty LSG202M-C is best suited for installations requiring an external control or capacitor module. It maintains the high-performance grinder characteristics of the Omnivore line while adding flexibility for system design. Always consult Liberty’s installation and wiring documentation, including correct capacitor sizing and control panel requirements.
