Description

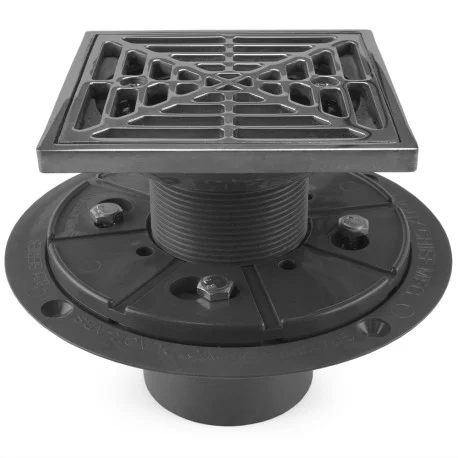

Sioux Chief 821 series, USA-made PVC drain for tile showers with solid cast, mirror polished 304 stainless steel square screw-on strainer and rim. Will not corrode over time and complements other shower/bathroom fixtures with mirror/polished chrome finish. Installed in combination with a shower pan liner and finished with tile. Adjustable height top easily accommodates various mortar bed thicknesses. Connects to standard 2″ PVC drain pipe or inside a 3″ PVC fitting. Premium quality & rugged, heavy-duty design.
Features:
- Machine screws and threaded brass insert in drain body and head adapter
- Drain head accepts both snap-in and screw-on types strainers, whether solid cast metal or stamped steel
- Durable, solid cast metal strainer and rim in high-end finish
- Includes free Double Duty test plug for DWV pressure test and shower pan water test. Holds 5 lb. air or water test
- Plug can also be used to prevent debris from falling down the drain during installation
- Beveled drain body and mounting holes for easy subfloor installation
- No blow-up balls, glue-in wafers or mechanical plugs needed
- Designed in accordance to ASME A112.18.2-2005 / CSA B125.2-05
- cUPC Listed
- Made in the USA.
Technical Specifications:
- Connection: 2″ Hub (fits over 2″ Sch. 40 or 80 PVC pipe) or 3″ Inside Fit (fits inside 3″ SCH40 PVC pipe)
- Strainer load ratings: 1000 lbs
- Strainer flow capacity: 16.4 GPM
- Overall height: 3-15/16″ – 5-15/16″ (adjustable for up to 2″ height)
- Drain body height: 2-5/8″
- Floor flange diameter: 6-5/8″
- Base adapter material: PVC
- Strainer material: Cast metal
- Strainer finish: Polished steel
- Strainer shape: Square
- Strainer thickness: 3/16″
- Strainer diameter (without rim): 4″
- Strainer type: Screw-on
- Screw center: 2-3/4″
- Rim width: 1/4″
- Rim material: Cast metal
- Head adapter material: ABS
- Head adapter connection: 2″ MIP.
