Description

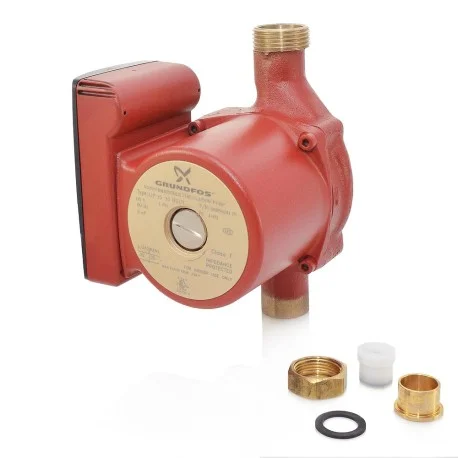

Grundfos UP15-10BUC7 model (59896241) is a 1/25HP Bronze Circulator Pump with 3/4″ Sweat Inlet and 3/4″ Sweat Union Outlet and a removable Integral Check Valve.
Applications:
Hot water recirculation applications, including radiant, storage tanks, solar and many others.
Features:
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, Composite, PES
- Bronze pump housing
Technical Specifications:
- Speed Number: 1
- Max flow: 6.6 US gpm
- Head max: 6.56 ft
- Liquid temperature range: 35.6 – 230 F
- Maximum operating pressure: 145 psi
- Approvals on nameplate: UL, CSA
- Pump housing: Bronze
- Pump housing: DIN W.-Nr. 2.1176.01
- Impeller: Composite, PES
- Maximum ambient temperature: 104 F
- Ambient max at 176 F liquid: 176 F
- Maximum operating pressure: 145 psi
- Flange standard: USA Sweat
- Type of connection: Bronze Sweat
- Pipe connection: 3/4″ Sweat
- Pressure stage: 10
- Port-to-port length: 7.72″
- Number of poles: 2
- Max. power input: 25 W
- Rated power – P2: 0.04 HP
- Main frequency: 60 Hz
- Voltage: 115V
- Current in speed 3: 0.22 A
- Capacitor size – run: 2F/400 V
- Insulation class (IEC 85): F
- Gross weight: 8 lbs
Warranty:
2 years from date of installation.
