Description

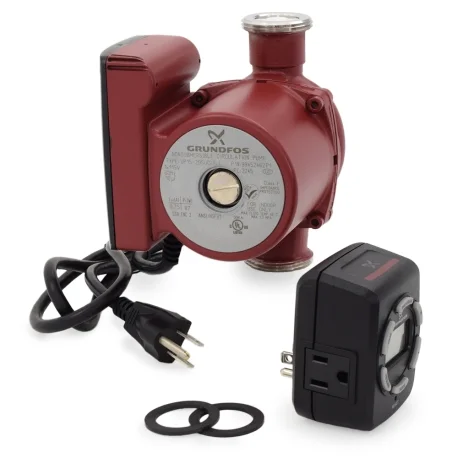

Grundfos UP15-29SUC/TLC is a 1/8HP Stainless steel Circulator Pump (Gundfos SKU# 99452462) with a removable Integral Check Valve, 1-1/4″ (GU125) union connections, Timer and 6-foot Power Cord. Grundfos UP15-29SUC/TLC is perfectly suited for recirculation applications thanks to the built-in timer and unnecessary wiring is eliminated by plugging the circulator directly into the electrical outlet. Stainless steel construction of the UP15-29SUC/TLC model allows to use it in applications such as radiant, solar, hydronic, chilled water cooling, domestic hot water recirculation, and many others.
Features:
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, Composite, PES
- Stainless steel pump housing
- Union connection
- Check valve
- Line cord
- Timer
Technical Specifications:
- Speed Number: 1
- Max flow: 20.7 US gpm
- Head max: 9.843 ft
- Liquid temperature range: 35.6 .. 150 F
- Maximum operating pressure: 145 psi
- Approvals on nameplate: UL, CSA
- Pump housing: Stainless steel
- Pump housing: DIN W.-Nr. 1.4301
- Pump housing: AISI 304
- Impeller: Composite, PES
- Maximum ambient temperature: 104 F
- Ambient max at 176 F liquid: 176 F
- Maximum operating pressure: 145 psi
- Flange standard: USA Threaded
- Type of connection: S.S. Union
- Pipe connection: 1 1/4″ NPSM
- Pressure stage: 10
- Port-to-port length: 5.87″
- Number of poles: 2
- Max. power input: 87 W
- Rated power – P2: 0.121 HP
- Main frequency: 60 Hz
- Voltage: 115V
- Current in speed 3: 0.75 A
- Capacitor size – run: 10 mF/180 V
- Insulation class (IEC 85): F
- Gross weight: 6.2 lbs
Warranty:
2 years from date of installation.
