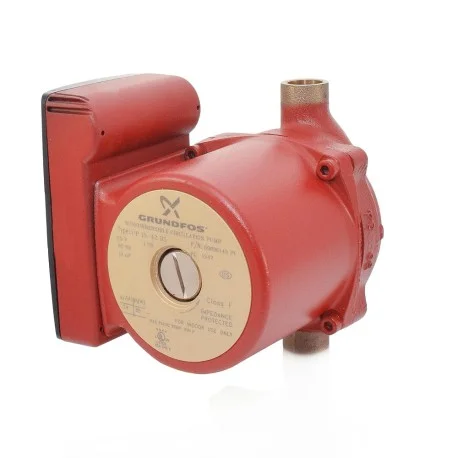

UP15-42B5 Bronze Circulator Pump, 1/2″ Sweat, 1/25 HP, 115V

Description

Grundfos UP15-42B5 (Grundfos SKU# 59896145) is a 1/25HP, single-speed Bronze Circulator Pump with 1/2″ Sweat inlet/outlet connections. Bronze body of the Grundfos UP15-42B5 model improves corrosion resistance of the pump and allows to use it in both closed loop and open loop systems, such as radiant heating, domestic hot water recirculation, solar systems, etc.

Features:

• Suitable for all heating systems includinghydronic heating, fan coil heating, radiant heating, solar heating, and other systems
• Built-in motor protection for long life
• Bronze body
• UL/CSA listed.

Technical Specifications:

• Voltage: 115V
• Amperage: 0.74 Amps
• Hertz: 60 Hz
• Phase: 1
• Watts: 85W
• Max Pressure: 145 psi
• Max Temperature: 230F
• Min Temperature: 36F
• Flow Range: 0-17 GPM
• Head Range: 0-15 ft
• Horse Power: 1/25HP
• Body: Bronze
• Connections: 1/2″ Sweat

Warranty:
2 years from the date of installation.
