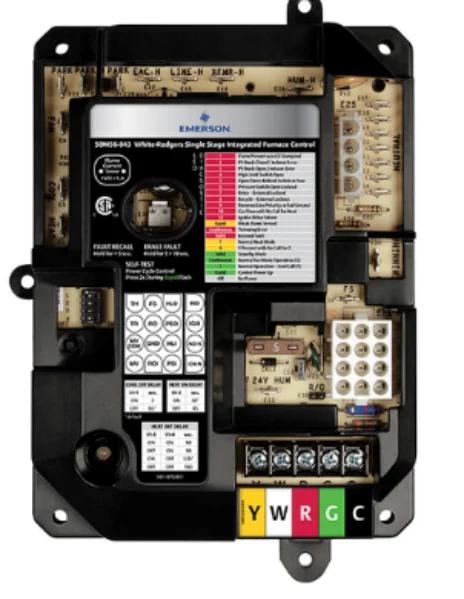

White Rodgers 50M56U-843 Universal Single Stage Integrated Furnace Control
Features:
- 3-Speed Fan that Cools, Low Heat and High Heat
- Universal Hotrod Nitride Igniter Kit
- 9 Quick Select/Quick Connect Wiring Harnesses
- Red LED Diagnostic Flash Codes with Stored Fault Recall
- Low Voltage Fuse Protection, 3 Amp Replaceable Automotive Type
- Humidifier and Electronic Air Cleaner Connections
Specifications:
- Ignition Furnace Control Kit
- Type Universal, 1-Stage
- Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
- Ignition Source Carbide and Nitride Igniter
- Prepurge Time 30 Second
- Flame Failure Response Time 2 Second
- Valve Rating 1.5 Amp at 25 Volt AC 50/60 Hertz
- Power Rating 25 Volt AC at 50/60 Hertz
- Size 5.25 Inch Width x 1.25 Inch Depth x 7 Inch Height
- Temperature Rating -40 to 176 Deg F
- Application Furnace
- Maximum Input Current 0.45 Amp at 25 Volt AC
- Igniter Relay Rating 6 Amp at 120 Volt AC at 50/60 Hertz (Resistive)
- Inducer Relay Rating 2.2 FLA to 3.5 LRA at 120 Volt AC
- Circulator Relay Rating 14.5 FLA to 25 LRA at 120 Volt AC
- Mounting Type Surface
- Delay Timing 30 Second (Heat/ON), 100/150 Second (Heat/OFF), 6 Second (Cool/ON), 45 Second (Cool/OFF)
- Includes Module, Wiring Harness, Hot Rod Igniter Kit
