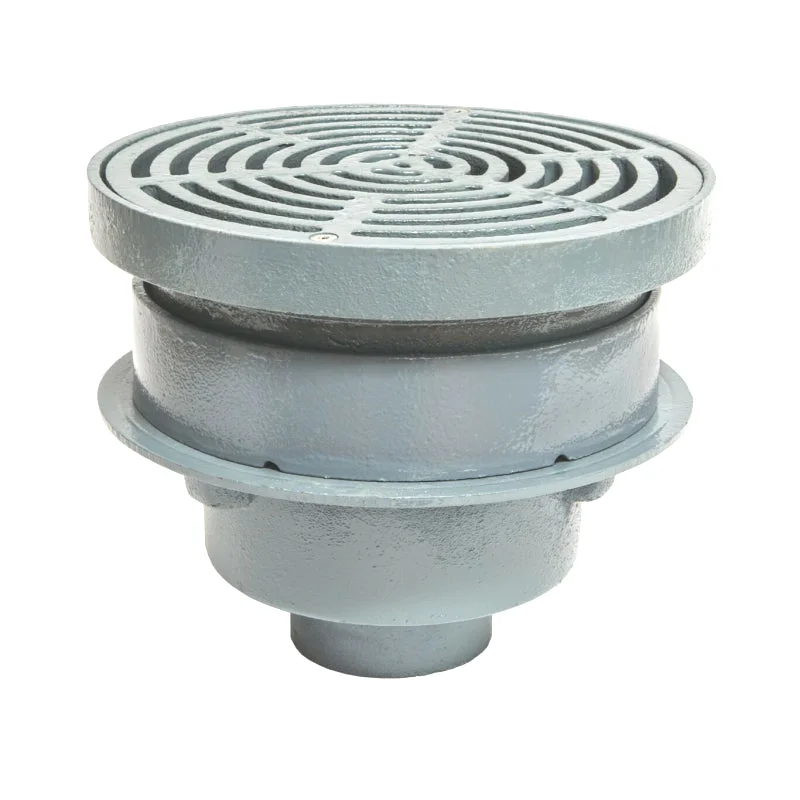

Zurn Z730 9″ Medium-Duty Top Drain
Product Overview
The Zurn Z730 9″ Medium-Duty Top Drain is designed for commercial and light industrial applications requiring reliable drainage and integrated trap protection. Featuring a Dura-Coated cast iron body with an integral double-wall trap and side outlet, the Z730 eliminates the need for a separate trap while helping prevent sewer gas infiltration. A bronze floor-level cleanout plug and medium-duty loose slotted grate provide easy maintenance and dependable daily performance.
Features & Benefits
- Integral double-wall trap eliminates the need for a separate P-trap
- Dura-Coated cast iron body for corrosion resistance and durability
- Medium-duty loose slotted grate for commercial foot traffic
- Bronze floor-level cleanout plug for easy maintenance access
- Available with cast iron or polished nickel bronze top finishes
Specifications
- Model: Zurn Z730
- Top Diameter: 9″ (229 mm)
- Body Material: Dura-Coated Cast Iron
- Trap: Integral double-wall trap
- Outlet: Side outlet, spigot connection
- Connection Sizes: 3″ (13″ body height), 4″ (16″ body height)
- Cleanout: Bronze floor-level cleanout plug
- Finish Options: Cast Iron (Z730), Polished Nickel Bronze (ZN730)
Installation Tips
- Confirm body height based on selected outlet size prior to installation.
- Ensure proper side outlet alignment to avoid unnecessary offsets.
- Handle bronze or nickel bronze tops carefully to protect the finish.
- Inspect and clean the integral trap periodically through the cleanout plug.
FAQs
Q1: Does the Z730 include a trap?
Yes, it features an integral double-wall trap.
Q2: What applications is this drain designed for?
Commercial restrooms, service areas, and light industrial spaces.
Q3: What outlet sizes are available?
3″ and 4″ spigot connections.
Q4: Are decorative finishes available?
Yes, polished nickel bronze tops are available under model ZN730.
Q5: Is maintenance access provided?
Yes, via the bronze floor-level cleanout plug.
